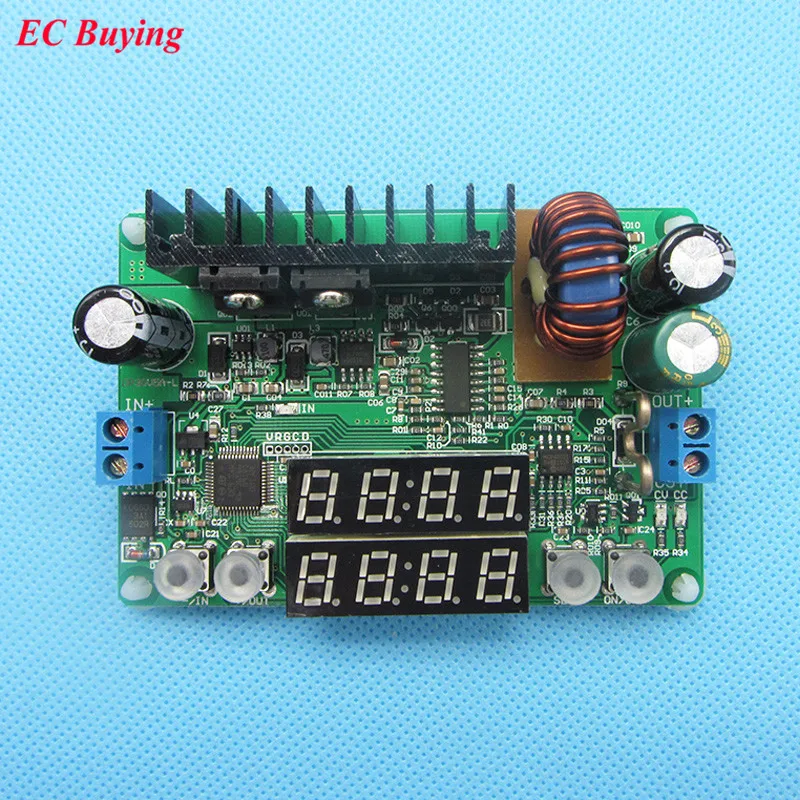

1 piece Adjustable Voltage Step-Down Module Voltage Ammeter 32V5A 160W NC DC Power Supply Module Charging
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
| On-time Delivery|
Guarantees: On-time Delivery 60 days
we accept retail and wholesale, welcome to contact our custom servicer, we will carefully calculate the most resonable price for you, thanks.
This Module has digital voltage ammeter function, through the digital tube (can be Removed)you can easily see the default voltage, input voltage, output voltage, preset current, output current.
Performance Input voltage range: 6-40.00V Output power range: 0-160W Output voltage range: 0-32.00V Output current range: 0-5.100A Dimensions: 85mm * 58mm * 31mm Output voltage setting and reading resolution: 0.01V Output current setting and reading resolution: 0.001A Output voltage measurement accuracy: ± (0.5% +1 word) Output current measurement accuracy: ± (1% + 3 words) Ripple (full load 40v to 32V / 5A): about 100mV peak to peak Note: must ensure that the input voltage is 1.1 times than output voltage, when it is high current work, please strengthen th e Cooling. Digital tube display CNC power supply operating instructions 1. Open or close the output: short press ON / OFF key in any state to turn the output on or off, turn on and off, turn off the output when the bottom of the digital control “OFF” indication. 2. Set the output voltage and current: Short press the SET key, the LED will start flashing, press “+” or “-” to increase or decrease the output value, press “SET” key again to switch “0.01V-> 0.1V -> 0.01A-> 0.01A-> 0.1A-> 1A-> Exit adjustment “, in the adjustment process within 6s without any operation button to automatically exit the adjustment. 3. Switch input and output display: In non-output voltage and current setting state, short press “IN” key or “OUT” key to switch display input voltage and output voltage. When the input voltage is displayed, the “IN” indicator lights up and the output voltage is displayed, and the “IN” indicator turns off. 4. CC, CV Indication: When the module is working in constant voltage or constant current mode, the CC and CV indicators will light to indicate CC and CV status. 5. Output current display Zero calibration: Under no load condition, press SET key to put power on, and output current display zero calibration, calibration will automatically exit the calibration process, release the SET button. 6. Set data automatic storage: During the key operation, the LED display status, output voltage and current setting data, switch output state will automatically store the memory, the next power-on default work in the stored state.
1, you can build a high-power universal charger. 2, you can build a precision power supply maintenance.
