DIYmall Programmer BDM/USBDM/OSBDM USBDM OSBDM the Freescale Download Debugger Emulator FZ0622

Description:

The target board to manually select 3.3V/5.0V power supply (target board power supply: 3.3V 500mA/5.0V 500mA);

Online download, single-step debugging and emulation, observed values of all registers and global variables;

CPU 48MHz clock speed, USB2.0 interface;

Support chips:

8-bit microcontroller: HCS08 Series;

16-bit microcontroller: the HCS12 to (including those without the SYNC feature (eg 9S12DP256B) series;

32: Coldfire V1 microcontrollers;

USBDM support three breakpoint debugging;

Can be developed in the following software development IDE (old and new versions of CW takes all!):

Codewarrior V10.2 (Eclipse version)

Codewarrior V10.1 (Eclipse version)

CodeWarriorLegacy versions

Codewarrior Development Studio for HCS12 (X) V5.1 &

CW for Microcontrollers V6.3 (RS08 is not supported)

Initial support for CodeSourcery Lite forColdfire

The protection circuit emulator:

USB port with ESD protection circuitry, 500mA resettable fuse;

BDM output data lines each plus overvoltage protection ESD protection;

BDM output port power foot plus TVS, overvoltage protection;

Self-powered use 500mA resettable fuse;

The emulators support for the chip list:

MC9S08MP16  MCF51

MC9S08AC128, MC9S08AC16, MC9S08AC32, MC9S08AC48, MC9S08AC60, MC9S08AC8, MC9S08AC96, MC9S08AW16, MC9S08AW16A, MC9S08AW32, MC9S08AW48, MC9S08AW60, MC9S08AW8A

MC9S08DE32, MC9S08DE60, MC9S08DN16, MC9S08DN32, MC9S08DN48, MC9S08DN60, MC9S08DV128, MC9S08DV16, MC9S08DV32, MC9S08DV48, MC9S08DV60, MC9S08DV96, MC9S08DZ128, MC9S08DZ16, MC9S08DZ32, MC9S08DZ48, MC9S08DZ60, MC9S08DZ96

MC9S08EN16, MC9S08EN32

MC9S08EL16, MC9S08EL32

MC9S08GB32, MC9S08GB32A, MC9S08GB60, MC9S08GB60A, MC9S08GT16, MC9S08GT16A, MC9S08GT32, MC9S08GT32A, MC9S08GT60, MC9S08GT60A, MC9S08GT8A

MC9S08JM16, MC9S08JM32, MC9S08JM60, MC9S08JM8

MC9S08JR12

MC9S08LC36, MC9S08LC60

MC9S08QA4, MC9S08QD2, MC9S08QD4, MC9S08QE128, MC9S08QE16, MC9S08QE32, MC9S08QE32, MC9S08QE4, MC9S08QE64, MC9S08QE8, MC9S08QE96, MC9S08QG4, MC9S08QG8

MC9S08RC16, MC9S08RC32, MC9S08RC60, MC9S08RC8, MC9S08RD16, MC9S08RD32, MC9S08RD60, MC9S08RD8, MC9S08RE16, MC9S08RE32, MC9S08RE60, MC9S08RE8, MC9S08RG32, MC9S08RG60

MC9S08SG16, MC9S08SG32, MC9S08SG4, MC9S08SG8

MC9S08SH16, MC9S08SH32, MC9S08SH4, MC9S08SH8

MC9S08SL16, MC9S08SL8

MC9S12A128B, MC9S12A256B, MC9S12A32, MC9S12A64, MC9S12A512

MC9S12B64, MC9S12B128

MC9S12C32, MC9S12C64, MC9S12C96

MC9S12D32, MC9S12D64, MC9S12DB128A, MC9S12DB128B, MC9S12DG128B, MC9S12DG256B, MC9S12DJ128B, MC9S12DJ256B, MC9S12DJ64, MC9S12DP256B, MC9S12DJ64, MC9S12DP256B, MC9S12DP512, MC9S12DT128B, MC9S12DT256, MC9S12DT256B

MC9S12E32, MC9S12E64, MC9S12E128, MC9S12E256

MC9S12G96, MC9S12G128

MC9S12GC16, MC9S12GC32, MC9S12GC128

MC9S12H128, MC9S12H256, MC9S12HN64, MC9S12HZ64, MC9S12HZ128, MC9S12HZ256

MC9S12HA32, MC9S12HA48, MC9S12HZ64

MC9S12HY32, MC9S12HY48, MC9S12HY64

MC9S12I32, MC9S12I128

MC9S12KC64, MC9S12KC128, MC9S12KG64, MC9S12KG128, MC9S12KG256, MC9S12KL64, MC9S12KL128, MC9S12KT128, MC9S12KT256

MC9S12NE64

MC9S12P32, MC9S12P64, MC9S12P96, MC9S12P128

MC9S12Q32, MC9S12Q64, MC9S12Q96, MC9S12Q128

MC9S12T64

MC9S12UF32

MC9S12XA128, MC9S12XA256, MC9S12XA512

MC9S12XB128, MC9S12XB256

MC9S12XD64, MC9S12XD128, MC9S12XD256, MC9S12XDG128, MC9S12XDP512, MC9S12XDQ256, MC9S12XDT256, MC9S12XDT384, MC9S12XDT512

MC9S12XEG128, MC9S12XEP100, MC9S12XEP768, MC9S12XEQ384, MC9S12XEQ512, MC9S12XET256

MC9S12XFR128

MC9S12XHY128, MC9S12XHY256

MC9S12XS64, MC9S12XS128, MC9S12XS256

Compatible IDEs Codewarrior V10.x(Eclipse version) Tested on Windows-XP-32bit,Windows-XP-64bit, Tested on Windows-7-64bit, Windows-7-32bit Tested on Ubuntu-32-bit CodeWarriorLegacy versions Codewarrior Development Studio for HCS12(X) V5.1(HCS12 ), V5.2 Tested on Windows-XP-32bit,Windows-XP-64bit, Tested on Windows-7-64bit, Windows-7-32bit CW for Microcontrollers V6.3(RS08 is not supported) Tested on Windows-XP-32bit, Initial support for CodeSourcery Lite for Coldfire Tested on Windows-XP-32bit Tips: 1. CodeWarrior software must be installed on the default installation directory path,not allowed to change, because the driver is installed by default to the drive C default installation directory. 2. Installation Steps: Step 1: Install the required software IDE Step 2: Install USBDM driver software; Step 3: Connect BDM to computer via USB cable; Step 4: Manually install BDM equipment; Step 5: Congratulations, you can use the target board.

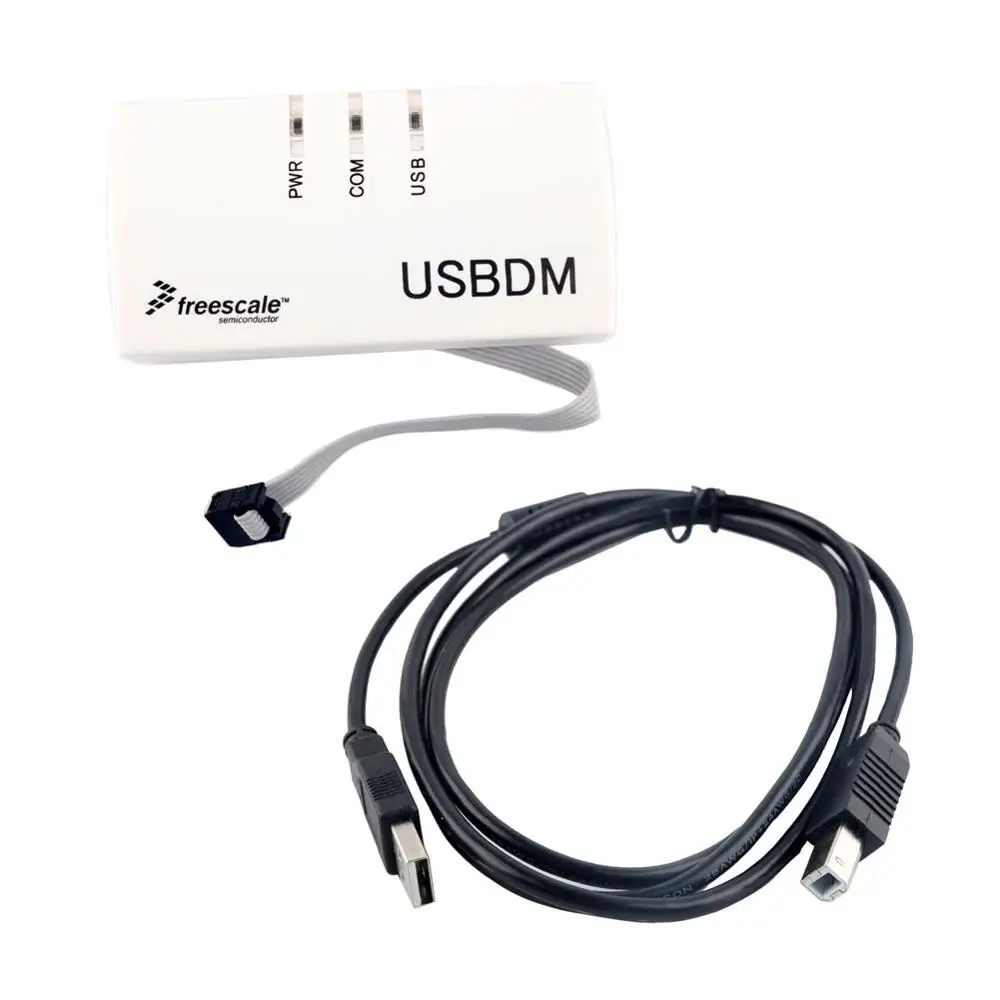

Package Included:

1 X USB-BDM Host

1 X USB print cable

1 X 6P cable

1 X Driver Link(please contact with us after placing order)

Drive: http://sourceforge.net/projects/usbdm/files/ http://www.diymalls.com/files/FZ0622-USBDM.zip (user name: diymall, password diymall)
